Q Plast support block
S Series

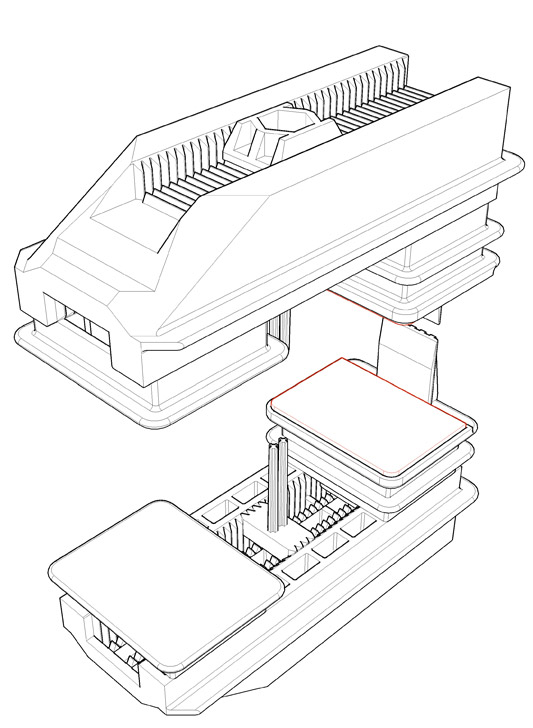

Modular system for securing the casted resin windings for big transformers.
These support are made in Polyamide 6, reinforced with 50% glass fibers.
A technopolymer with a heat deflection temperature (HDT) > 200 °C.
Elastic tensile modulus > 11,000 MPa and maximum tensile load > 170 MPa.
DESIGN
INTERNAL
SYSTEM
MODULAR
easy
install
MAXIMUM
Adaptability
Components

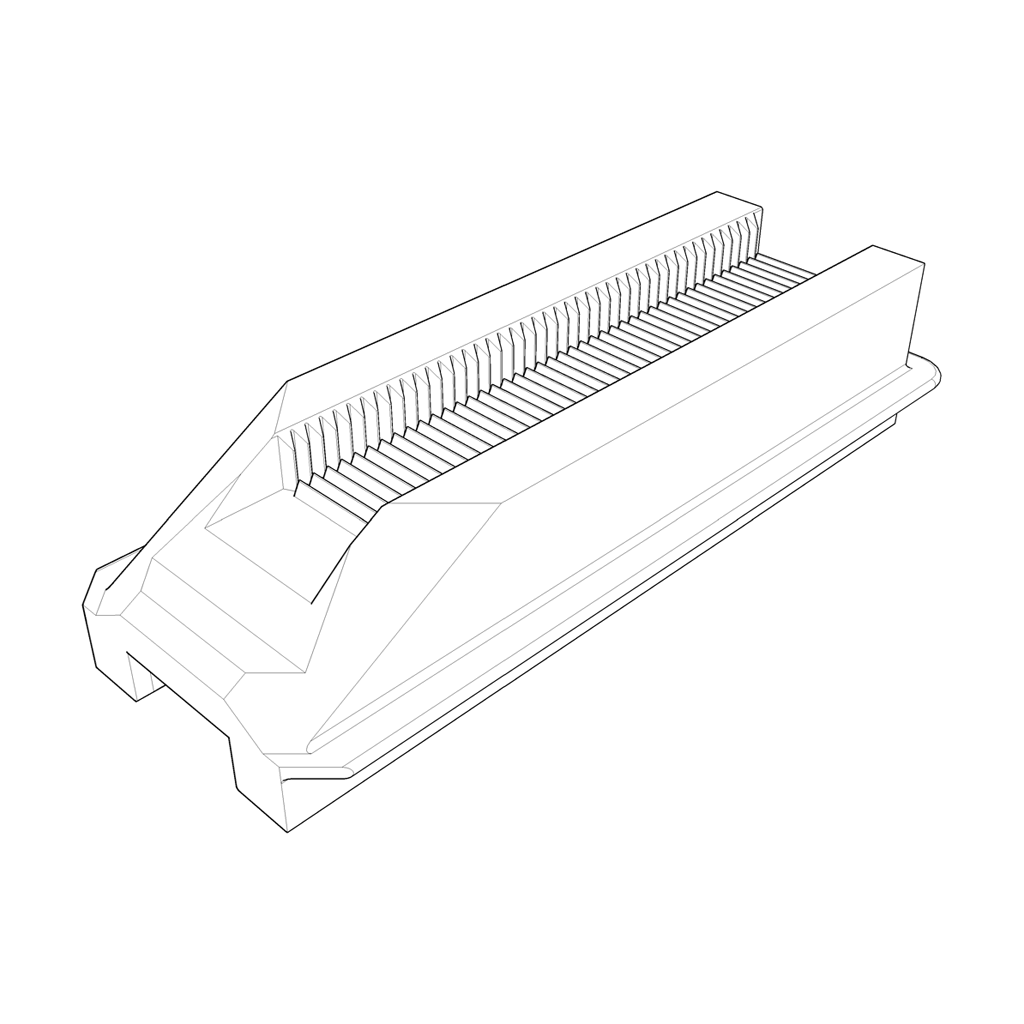

Fixed support
Riser support
Closed riser supports

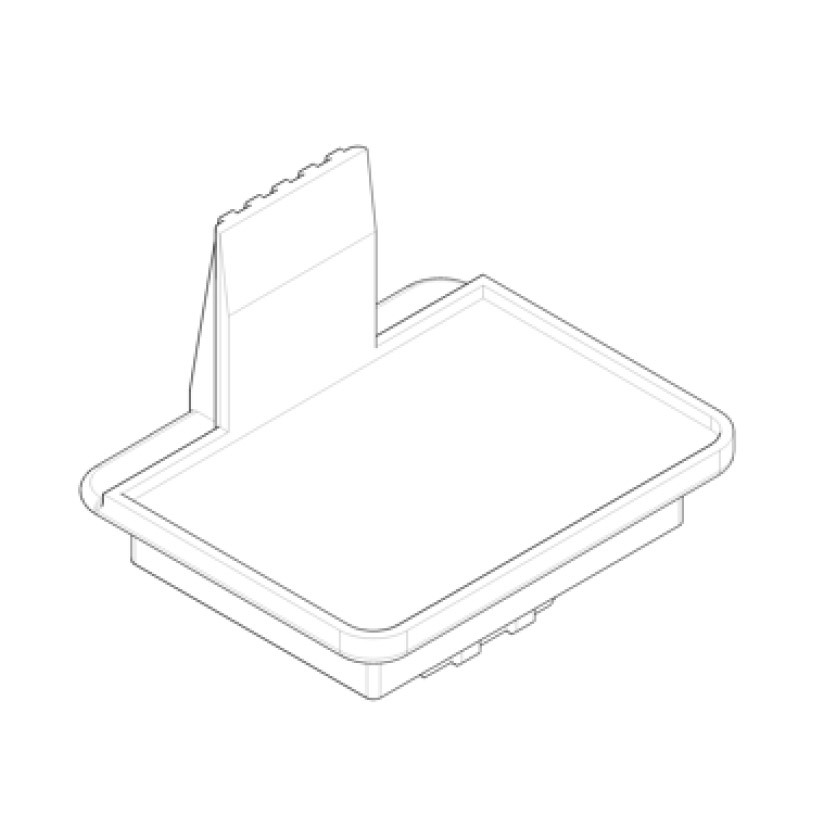

Centering supports with paddle
Screw stoppage

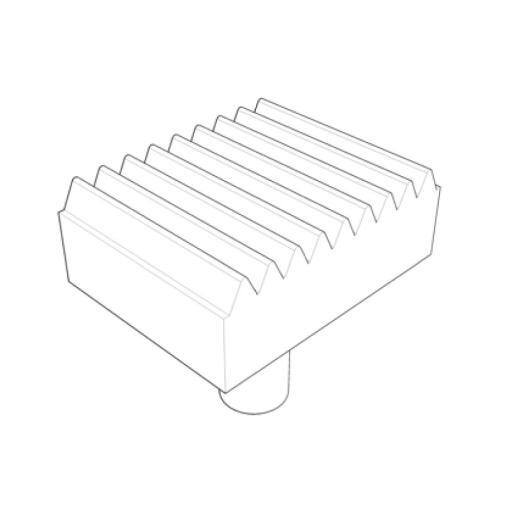

Stake
Fork
Join

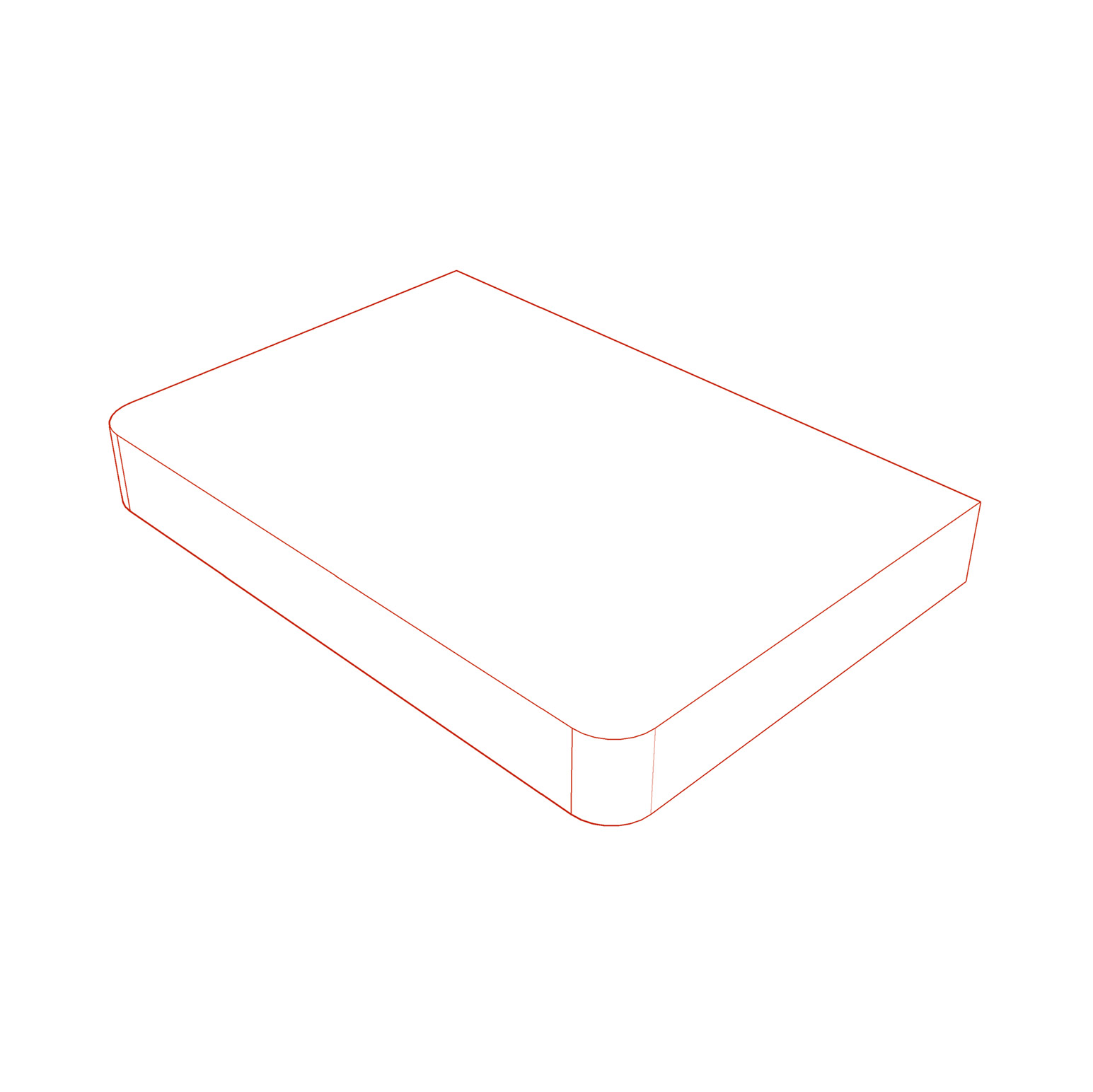

Shock absorber
Centering supports without paddle
Contact us
We provide complete support, contact us and we will send you a drawing of an assembly of the necessary components with their respective codes and quantities, in order to meet your needs.
